CAMS 550C W/PLATE M8 O/C

Esiet pirmais, kurš novērtē šo produktu

Noliktavā

Produkta kods

09251362

2 535,00 €

Nosūtīsim: no 04.11.2026 līdz 27.01.2027

Piegādāt uz

Aprēķināt piegādes izmaksas

Valsts

Štats/Province

Daudzums

Aprēķināt ikmēneša maksājumu

▼

Izvēlēties piegādātāju

Pirmā iemaksa

€

Aizdevuma summa: –

Maksājuma periods

24 mēneši

3 mēneši 60 mēneši

Ikmēneša maksājums – €

Produkta cena –

Aizdevuma summa –

Kopējā summa –

Procentu izmaksas –

Procentu likme –

Līguma maksa –

Administrēšanas maksa –

Maks. aizdevuma summa –

Kalkulators ir informatīvs. Galīgais piedāvājums ir atkarīgs no pakalpojumu sniedzēja nosacījumiem un kredītlēmuma.

Details

Oil Pump/Cam Plate:
Precision machined from billet aluminum
Blue anodized finish
Passage plugs removable for servicing
Independant scavenge sections for flywheel cavity and cam chest
Debris screens in both pickups
Magnet in cam chest to help stop debris from entering oil pump
Increased flow capacity on both feed and scavenge side
Adjustable pressure relief vale is adjustable with unit installed in engine
Includes S&S high performance cam chain tensioner
Pushrods:
Quickee pushrods
Tappets:
S&S precision tappets
Tappet Cuffs:
Hard anodized black coating
Billet aluminum construction
Stronger than stock material eliminates distortion
Improves tappet stability in high lift and high rpm situations
Cam:
Includes all gaskets, bearings and hardware for installation
Made in the USA

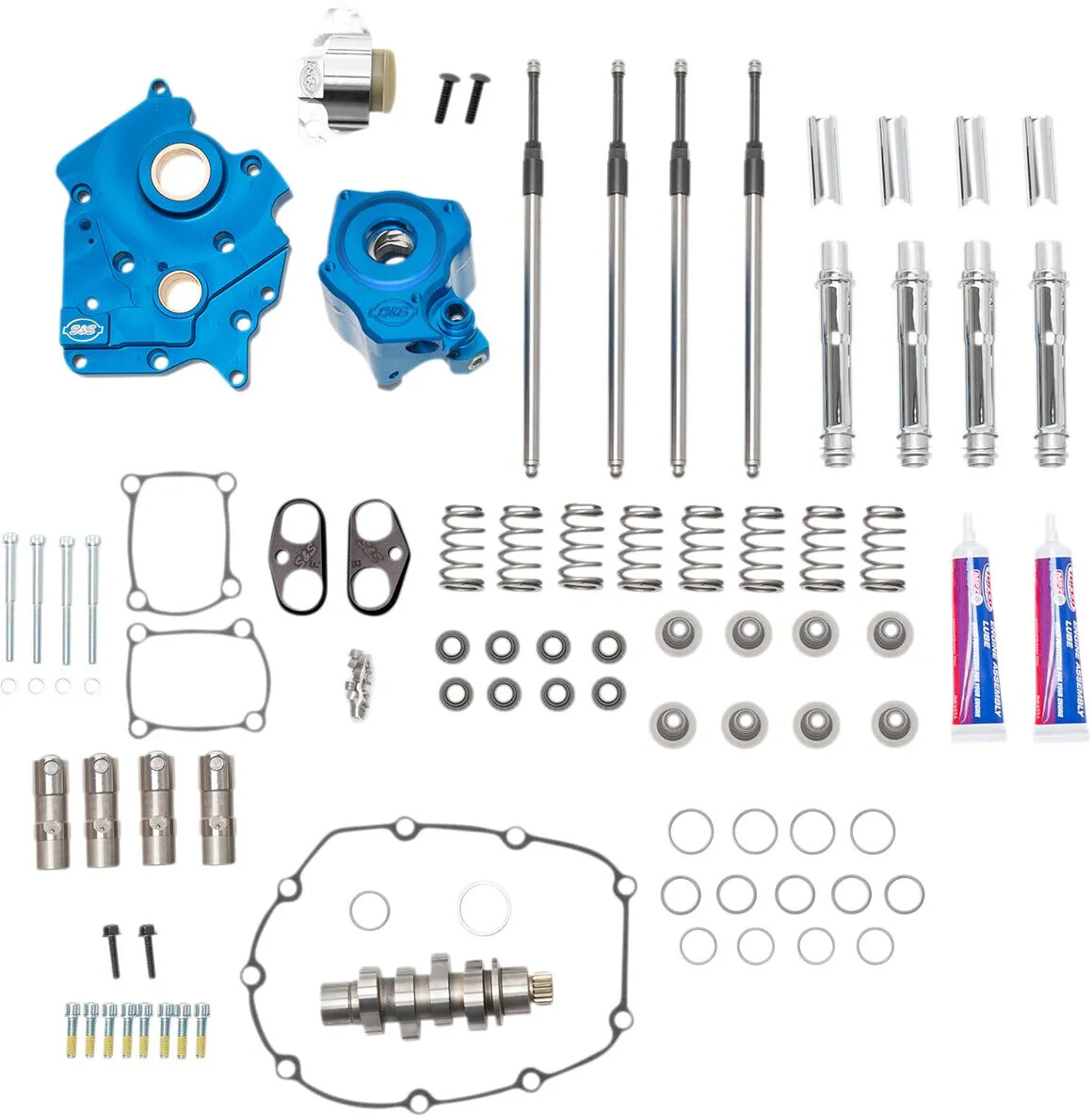

550C cam is designed for big bore applications. Kit Includes: • Cam Chain Tensioner • Cam Support Plate Assembly • 550C Camshaft • Cam Chain Installation Kit • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • 3" S&S® Blue and White Logo Decal • Spring Kit • Oil Cooled Oil Pump Assembly • Hydraulic Precision Tappet Set

Brand

S&S CYCLE

Vendor Part Number

310-1082B

Application

Oil Cooled

Exhaust Close

30,5° Front, 38,4° Rear

Exhaust Duration

273,1° Front, 277,8° Rear

Exhaust Lift

0,550"

Exhaust Lift at TDC

0,232" Front, 0,264" Rear

Exhaust Lobe Centerline

106,0° Front, 100,5° Rear

Exhaust Open

62,5° Front, 59,4° Rear

Features

Chrome Pushrod Tubes

Grind

550C

Intake Close

29,4° Front, 31,1° Rear

Intake Duration

218,9° Front, 214,2° Rear

Intake Lift

0,550"

Intake Lift at TDC

0,127" Front, 0,099" Rear

Intake Lobe Centerline

100,0° Front, 104,0° Rear

Intake Open

9,4° Front, 3,1° Rear

Model

550 Big Bore

Product Name

Camchest Kit

Type

Chain

Units

Kit

Vairāk informācijas

Vairāk informācijas
Svars	5.440000
Augstums	140
Platums	296
Zīmols	S+S CYCLE
Garums	430
Pieejamība	Rūpnīcas pasūtījums
Piegādātāja preces kods	310-1082B
Outlet, gala izpārdošana	Nē
Tiek nosūtīts / Nosūtām	Jautājiet par pieejamību
Piemērotība modelim (1. kat.)	HARLEY DAVIDSON FLDE 1750 ABS SOFTAIL DELUXE 107 2018-2020 FLFB 1750 ABS SOFTAIL FAT BOY 107 2018-2020 FLFBS 1868 ABS SOFTAIL FAT BOY 114 2018-2022 FLFBS 1868 ABS SOFTAIL FAT BOY ANNIVERSARY (ANV) 114 2018 FLFBS 1868 ABS SOFTAIL FAT BOY ANNIVERSARY (ANX) 114 2018 FLHC 1750 ABS SOFTAIL HERITAGE CLASSIC 107 2018-2022 FLHCS 1868 ABS SOFTAIL HERITAGE CLASSIC 114 2018-2022 FLHCS 1868 ABS SOFTAIL HERITAGE CLASSIC ANNIVERSARY 114 2018 FLHR 1750 ABS ROAD KING 107 2017-2022 FLHR 1750 ROAD KING 107 2017-2019 FLHRC 1750 ABS ROAD KING CLASSIC 107 2017-2019 FLHRXS 1750 ABS ROAD KING SPECIAL 107 2017-2018 FLHRXS 1868 ABS ROAD KING SPECIAL 114 2019-2022 FLHT 1750 ABS ELECTRA GLIDE STANDARD 107 2019-2022 FLHT 1868 ABS ELECTRA GLIDE REVIVAL 114 2021 FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2019 FLHTCUTG 1750 ABS TRI GLIDE ULTRA 107 2019 FLHTCUTG 1750 TRI GLIDE ULTRA 107 2018 FLHTCUTG 1750 TRI GLIDE ULTRA ANNIVERSARY 107 2018 FLHTCUTG 1750 TRIKE TRI GLIDE ULTRA CLASSIC 107 2017 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2020-2022 FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022 FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2020-2021 FLHX 1750 ABS STREET GLIDE 107 2017-2022 FLHX 1750 ABS STREET GLIDE ANNIVERSARY 107 2018 FLHX 1750 STREET GLIDE 107 2017-2019 FLHXS 1750 ABS STREET GLIDE SPECIAL 107 2017-2018 FLHXS 1750 ABS STREET GLIDE SPECIAL ANNIVERSARY 107 2018 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 2019-2022 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 ARCTIC BLAST LIMITED 2021 FLHXSE 1923 ABS STREET GLIDE CVO 117 2022 FLHXST 1923 ABS STREET GLIDE ST 117 2022 FLRT 1750 ABS FREEWHEELER 107 2019 FLRT 1750 FREEWHEELER 107 2017-2018 FLRT 1868 ABS FREEWHEELER 114 2020-2022 FLSB 1750 ABS SOFTAIL SPORT GLIDE 107 2018-2022 FLSL 1750 ABS SOFTAIL SLIM 107 2018-2021 FLTRX 1750 ABS ROAD GLIDE 107 2017-2022 FLTRX 1750 ROAD GLIDE 107 2017-2019 FLTRXS 1750 ABS ROAD GLIDE SPECIAL 107 2017-2018 FLTRXS 1868 ABS ROAD GLIDE SPECIAL 114 2019-2022 FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2022 FLTRXST 1923 ABS ROAD GLIDE ST 117 2022 FXBB 1750 ABS SOFTAIL STREET BOB 107 2018-2020 FXBB 1750 ABS SOFTAIL STREET BOB 114 2021-2022 FXBB 1750 SOFTAIL STREET BOB 114 2021 FXBR 1750 ABS SOFTAIL BREAKOUT 107 2018-2020 FXBRS 1868 ABS SOFTAIL BREAKOUT 114 2018-2022 FXBRS 1868 ABS SOFTAIL BREAKOUT ANNIVERSARY (ANX) 114 2018 FXDR 1868 ABS SOFTAIL KING 114 2019 FXDRS 1868 ABS SOFTAIL KING 114 2020 FXFB 1750 ABS SOFTAIL FAT BOB 107 2018-2019,2021 FXFBS 1868 ABS SOFTAIL FAT BOB 114 2018-2022 FXLR 1750 ABS SOFTAIL LOW RIDER 107 2018-2020 FXLRS 1868 ABS SOFTAIL LOW RIDER S 114 2020-2021 FXLRS 1923 ABS SOFTAIL LOW RIDER S 117 2022 FXLRST 1923 ABS SOFTAIL LOW RIDER ST 117 2022 FXST 1750 ABS SOFTAIL STANDARD 2020-2022 FXST 1750 SOFTAIL STANDARD 2021
