VALVE SPRINGS HIGH M8 17+

Esiet pirmais, kurš novērtē šo produktu

Noliktavā

Produkta kods

09263138

Special Price 678,00 € Regular Price 775,00 €

Nosūtīsim: no 14.04.2026 līdz 15.04.2026

Piegādāt uz

Aprēķināt piegādes izmaksas

Valsts

Štats/Province

Daudzums

Aprēķināt ikmēneša maksājumu

▼

Izvēlēties piegādātāju

Pirmā iemaksa

€

Aizdevuma summa: –

Maksājuma periods

24 mēneši

3 mēneši 60 mēneši

Ikmēneša maksājums – €

Produkta cena –

Aizdevuma summa –

Kopējā summa –

Procentu izmaksas –

Procentu likme –

Līguma maksa –

Administrēšanas maksa –

Maks. aizdevuma summa –

Kalkulators ir informatīvs. Galīgais piedāvājums ir atkarīgs no pakalpojumu sniedzēja nosacījumiem un kredītlēmuma.

Details

Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift
Springs will accommodate over 0.600" cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

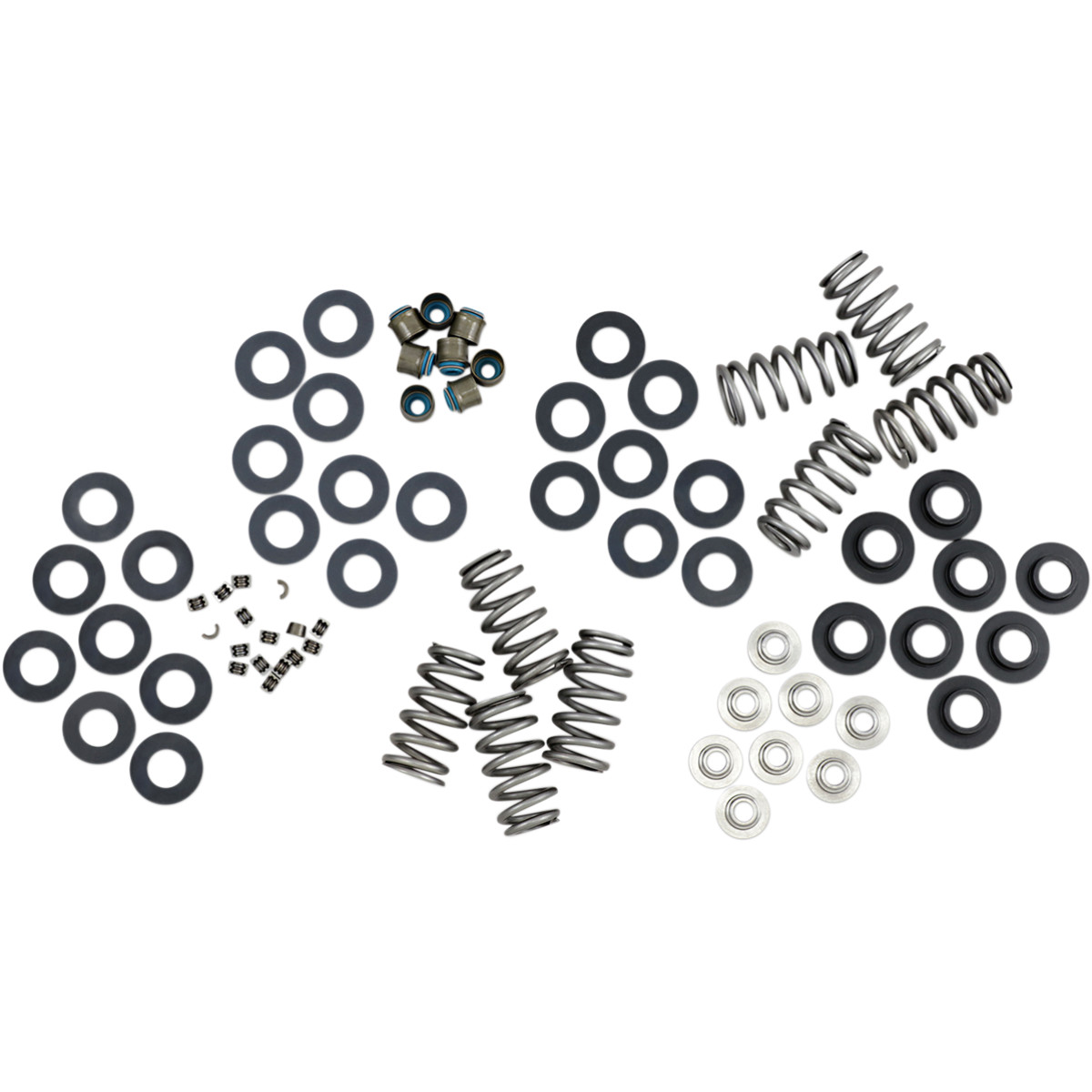

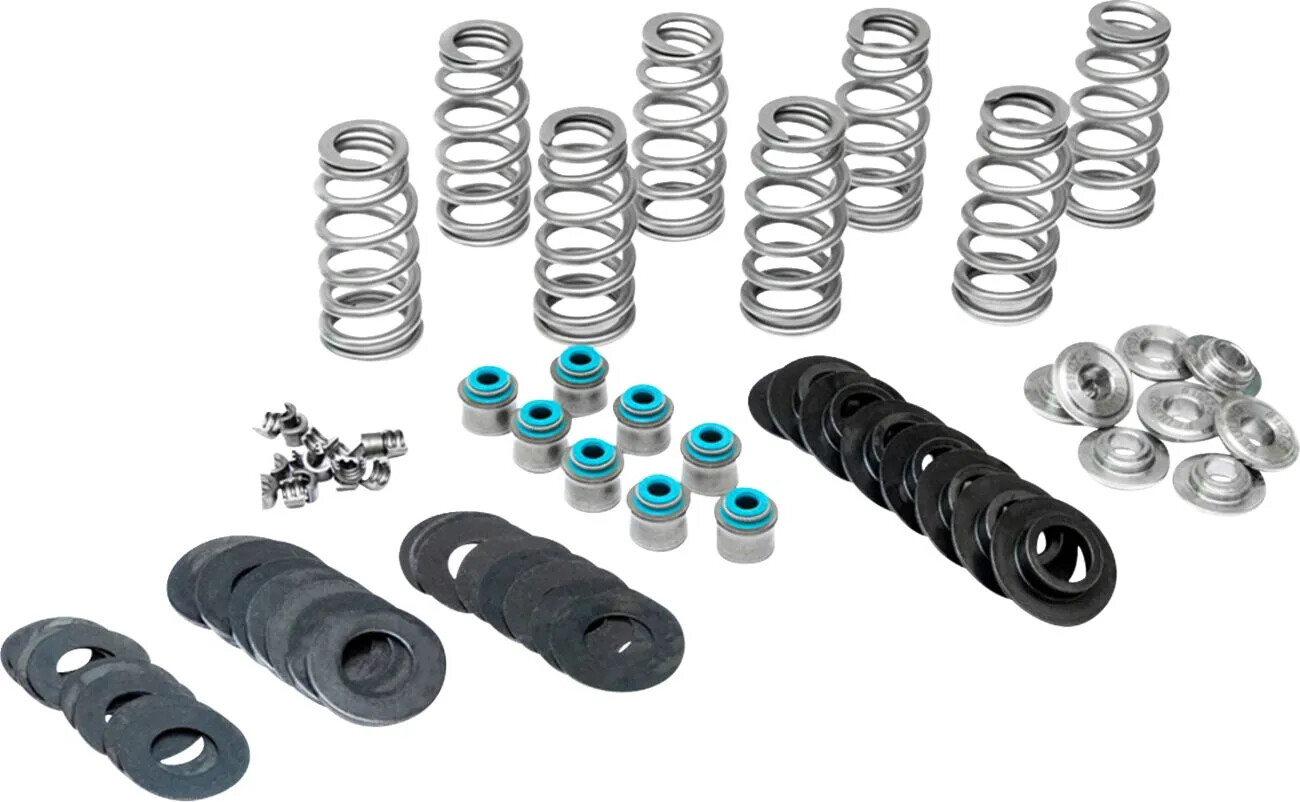

Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
Seat lb/Installed Height
151 lb @ 1.475" (0.485" Lift)
144 lb @ 1.498" (0.508" Lift)
143 lb @ 1.501" (0.511" Lift)
140 lb @ 1.511" (0.521" Lift)
124 lb @ 1.562" (0.578" Lift)
120 lb @ 1.582" (0.592" Lift)
304 lb @ 0.990" open height
Coil Bind @ 0.945"
Recommended for +0.540” lift camshafts
Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
Made in the USA
Only recommended for large lift camshafts and race style engines as these valvesprings if not set properly will create extreme rocker arm deflection.
EU: Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 1,435 cm lift
EU: Springs will accommodate over 1,524 cm cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
EU: 68,49 kg @ 3,747 cm(1,232 cm Lift
EU: 65,32 kg @ 3,805 cm(1,290 cm Lift)
EU: 64,86 kg @ 3,813 cm(1,298 cm Lift)
EU: 63,50 kg @ 3,838 cm(1,323 cm Lift)
EU: 56,25 kg @ 3,968 cm(1,468 cm Lift)
EU: 54,43 kg @ 4,018 cm(1,504 cm Lift)
EU: 137,89 kg @ 2,515 cm Open Height
EU: Coil Bind @ 2,400 cm
EU: Recommended for 1,372 cm + lift camshafts

Brand

FEULING PARTS

Vendor Part Number

1207

Model

High-Load Beehive

Product Name

Spring Kit

Style

Ovate Wire Beehive

Type

Valve

Units

Kit

Vairāk informācijas

Vairāk informācijas
Svars	0.640000
Augstums	94
Platums	124
Zīmols	FEULING PARTS
Garums	159
Piegādātāja preces kods	1207
Outlet, gala izpārdošana	Nē
Piemērotība modelim (1. kat.)	HARLEY DAVIDSON FLDE 1750 ABS SOFTAIL DELUXE 107 2018-2020 FLFB 1750 ABS SOFTAIL FAT BOY 107 2018-2020 FLFBS 1868 ABS SOFTAIL FAT BOY 114 2018-2022 FLFBS 1868 ABS SOFTAIL FAT BOY ANNIVERSARY (ANV) 114 2018 FLFBS 1868 ABS SOFTAIL FAT BOY ANNIVERSARY (ANX) 114 2018 FLHC 1750 ABS SOFTAIL HERITAGE CLASSIC 107 2018-2022 FLHCS 1868 ABS SOFTAIL HERITAGE CLASSIC 114 2018-2022 FLHCS 1868 ABS SOFTAIL HERITAGE CLASSIC ANNIVERSARY 114 2018 FLHR 1750 ABS ROAD KING 107 2017-2022 FLHR 1750 ROAD KING 107 2017-2019 FLHRC 1750 ABS ROAD KING CLASSIC 107 2017-2019 FLHRXS 1750 ABS ROAD KING SPECIAL 107 2017-2018 FLHRXS 1868 ABS ROAD KING SPECIAL 114 2019-2022 FLHT 1750 ABS ELECTRA GLIDE STANDARD 107 2019-2022 FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2017-2019 FLHTCUTG 1750 ABS TRI GLIDE ULTRA 107 2019 FLHTCUTG 1750 TRI GLIDE ULTRA 107 2018 FLHTCUTG 1750 TRI GLIDE ULTRA ANNIVERSARY 107 2018 FLHTCUTG 1750 TRIKE TRI GLIDE ULTRA CLASSIC 107 2017 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2020-2022 FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022 FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2020-2021 FLHTK 1750 ABS ELECTRA GLIDE ULTRA LIMITED 107 2017 FLHTK 1750 ABS ULTRA LIMITED 107 2018 FLHTK 1750 ABS ULTRA LIMITED ANNIVERSARY 107 2018 FLHTK 1750 ABS ULTRA LIMITED SHRINE EDITION 107 2018 FLHTK 1868 ABS GLIDE ULTRA LIMITED 114 2019-2022 FLHTK 1868 ABS ULTRA LIMITED SHRINE EDITION 114 2019-2021 FLHTKL 1750 ABS ELECTRA GLIDE ULTRA LIMITED LOW 107 2017 FLHTKL 1750 ABS ULTRA LIMITED LOW 107 2018 FLHTKL 1868 ABS ULTRA LIMITED LOW 114 2019 FLHTKSE 1868 ABS ELECTRA GLIDE ULTRA LIMITED CVO 114 2017 FLHTKSE 1923 ABS ULTRA LIMITED CVO 117 2018-2021 FLHTKSE 1923 ABS ULTRA LIMITED CVO ANNIVERSARY 117 2018 FLHX 1750 ABS STREET GLIDE 107 2017-2022 FLHX 1750 ABS STREET GLIDE ANNIVERSARY 107 2018 FLHX 1750 STREET GLIDE 107 2017-2019 FLHXS 1750 ABS STREET GLIDE SPECIAL 107 2017-2018 FLHXS 1750 ABS STREET GLIDE SPECIAL ANNIVERSARY 107 2018 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 2019-2022 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 ARCTIC BLAST LIMITED 2021 FLHXSE 1868 ABS STREET GLIDE CVO 114 2017 FLHXSE 1923 ABS STREET GLIDE CVO 117 2018-2022 FLRT 1750 ABS FREEWHEELER 107 2019 FLRT 1750 FREEWHEELER 107 2017-2018 FLRT 1868 ABS FREEWHEELER 114 2020-2022 FLSB 1750 ABS SOFTAIL SPORT GLIDE 107 2018-2022 FLSL 1750 ABS SOFTAIL SLIM 107 2018-2021 FLTRK 1868 ABS ROAD GLIDE LIMITED 114 2020-2022 FLTRKSE 1923 ABS ROAD GLIDE LIMITED CVO 117 2022 FLTRU 1750 ABS ROAD GLIDE ULTRA 107 2017-2018 FLTRU 1868 ABS ROAD GLIDE ULTRA 114 2019 FLTRX 1750 ABS ROAD GLIDE 107 2017-2022 FLTRX 1750 ROAD GLIDE 107 2017-2019 FLTRXS 1750 ABS ROAD GLIDE SPECIAL 107 2017-2018 FLTRXS 1868 ABS ROAD GLIDE SPECIAL 114 2019-2022 FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2018-2022 FXBB 1750 ABS SOFTAIL STREET BOB 107 2018-2020 FXBB 1750 ABS SOFTAIL STREET BOB 114 2021-2022 FXBB 1750 SOFTAIL STREET BOB 114 2021 FXBR 1750 ABS SOFTAIL BREAKOUT 107 2018-2020 FXBRS 1868 ABS SOFTAIL BREAKOUT 114 2018-2022 FXBRS 1868 ABS SOFTAIL BREAKOUT ANNIVERSARY (ANX) 114 2018 FXDR 1868 ABS SOFTAIL KING 114 2019 FXDRS 1868 ABS SOFTAIL KING 114 2020 FXFB 1750 ABS SOFTAIL FAT BOB 107 2018-2019,2021 FXFBS 1868 ABS SOFTAIL FAT BOB 114 2018-2022 FXLR 1750 ABS SOFTAIL LOW RIDER 107 2018-2020 FXLRS 1868 ABS SOFTAIL LOW RIDER S 114 2020-2021 FXST 1750 ABS SOFTAIL STANDARD 2021-2022 FXST 1750 SOFTAIL STANDARD 2021
