Soodushind -13%

CAM 475G W/PLT OC/CHR M8

Esiet pirmais, kurš novērtē šo produktu

Noliktavā

Produkta kods

09251304

Special Price 1 858,00 € Regular Price 2 124,00 €

Nosūtīsim: no 08.04.2026 līdz 09.04.2026

Piegādāt uz

Aprēķināt piegādes izmaksas

Valsts

Štats/Province

Daudzums

Aprēķināt ikmēneša maksājumu

▼

Izvēlēties piegādātāju

Pirmā iemaksa

€

Aizdevuma summa: –

Maksājuma periods

24 mēneši

3 mēneši 60 mēneši

Ikmēneša maksājums – €

Produkta cena –

Aizdevuma summa –

Kopējā summa –

Procentu izmaksas –

Procentu likme –

Līguma maksa –

Administrēšanas maksa –

Maks. aizdevuma summa –

Kalkulators ir informatīvs. Galīgais piedāvājums ir atkarīgs no pakalpojumu sniedzēja nosacījumiem un kredītlēmuma.

Details

All parts in each kit are matched to ensure superior quality, fit, finish and performance
Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and scavenge sides
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Magnet in cam chest to help to stop debris from entering oil pump
S&S Quickee Pushrods with finished pushrod tubes
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
Improved tappet stability in high-lift and high-rpm situations
Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
Made in the USA

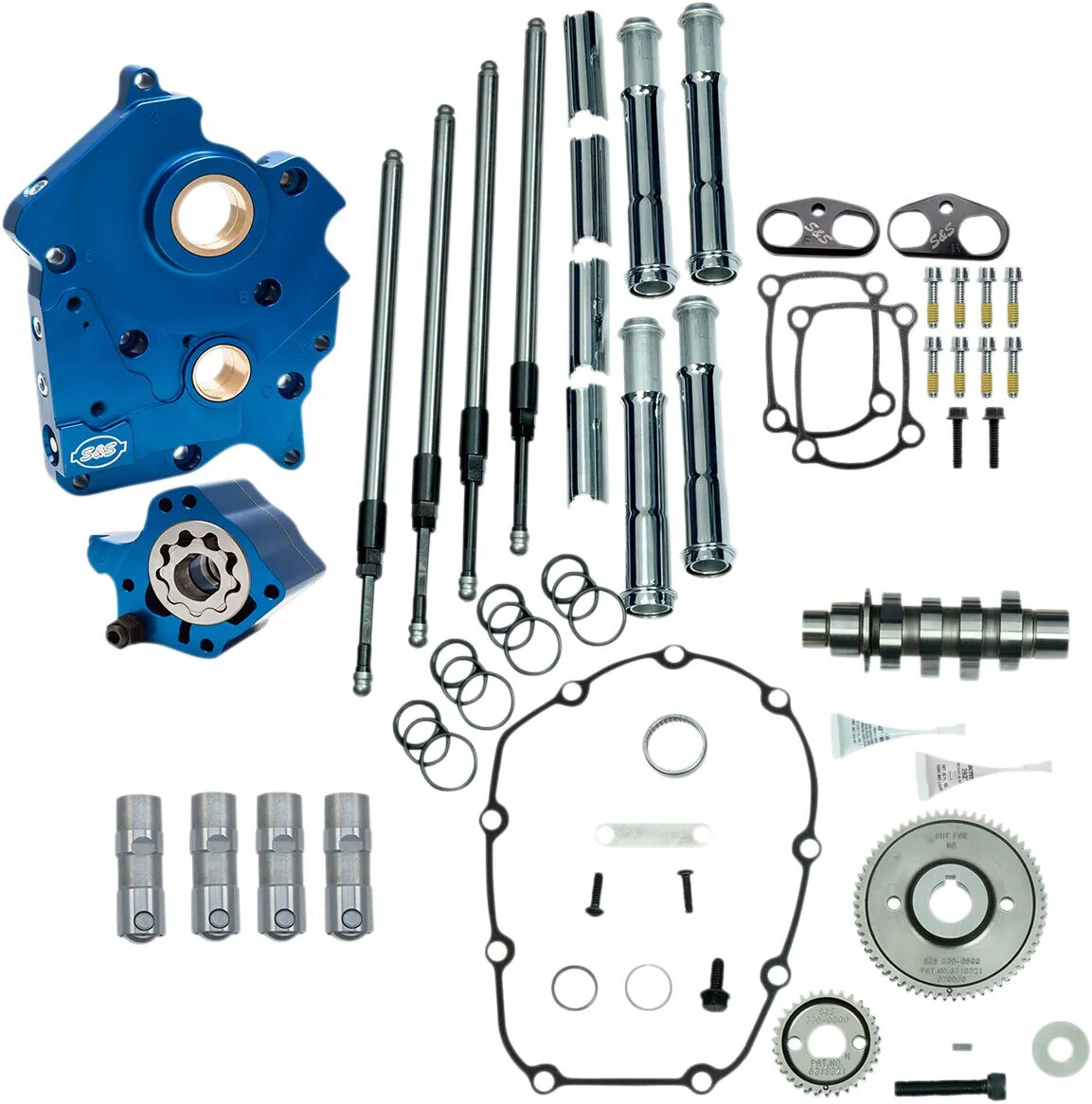

475 is a bolt-in 100 horsepower cam. Kit Includes: • Oil Pump Screw Kit • 475G Camshaft • Cam Drive Gear Kit • 31 Tooth Pinion Gear • Camshaft Installation Kit • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • 3" S&S® Blue and White Logo Decal • Cam Plate Support Assembly • Oil Cooled Oil Pump Assembly • Hydraulic Precision Tappet Set • 1 oz Torco® Engine Assembly Lube

Brand

S&S CYCLE

Vendor Part Number

310-1006A

Application

Oil Cooled

Exhaust Close

28,5° Front, 20,2° Rear

Exhaust Duration

263,9° Front, 252,5° Rear

Exhaust Lift

0,475"

Exhaust Lift at TDC

0,208" Front, 0,170" Rear

Exhaust Lobe Centerline

103,5° Front, 106,0° Rear

Exhaust Open

55,5° Front, 52,2° Rear

Features

Chrome Pushrod Tubes

Grind

475G

Intake Close

27,2° Front, 31,2° Rear

Intake Duration

213,5° Front, 213,5° Rear

Intake Lift

0,475"

Intake Lift at TDC

0,107" Front, 0,093" Rear

Intake Lobe Centerline

100,5° Front, 104,5° Rear

Intake Open

6,2° Front, 2,2° Rear

Model

475 HP

Product Name

Camchest Kit

Type

Gear

Units

Kit

Vairāk informācijas

Vairāk informācijas
Svars	5.590000
Augstums	135
Platums	290
Zīmols	S+S CYCLE
Garums	430
Piegādātāja preces kods	310-1006A
Outlet, gala izpārdošana	Nē
Piemērotība modelim (1. kat.)	HARLEY DAVIDSON FLDE 1750 ABS SOFTAIL DELUXE 107 2018-2020 FLFB 1750 ABS SOFTAIL FAT BOY 107 2018-2020 FLFBS 1868 ABS SOFTAIL FAT BOY 114 2018-2022 FLFBS 1868 ABS SOFTAIL FAT BOY ANNIVERSARY (ANV) 114 2018 FLFBS 1868 ABS SOFTAIL FAT BOY ANNIVERSARY (ANX) 114 2018 FLHC 1750 ABS SOFTAIL HERITAGE CLASSIC 107 2018-2022 FLHCS 1868 ABS SOFTAIL HERITAGE CLASSIC 114 2018-2022 FLHCS 1868 ABS SOFTAIL HERITAGE CLASSIC ANNIVERSARY 114 2018 FLHR 1750 ABS ROAD KING 107 2017-2022 FLHR 1750 ROAD KING 107 2017-2019 FLHRC 1750 ABS ROAD KING CLASSIC 107 2017-2019 FLHRXS 1750 ABS ROAD KING SPECIAL 107 2017-2018 FLHRXS 1868 ABS ROAD KING SPECIAL 114 2019-2022 FLHT 1750 ABS ELECTRA GLIDE STANDARD 107 2019-2022 FLHT 1868 ABS ELECTRA GLIDE REVIVAL 114 2021 FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2019 FLHTCUTG 1750 ABS TRI GLIDE ULTRA 107 2019 FLHTCUTG 1750 TRI GLIDE ULTRA 107 2018 FLHTCUTG 1750 TRI GLIDE ULTRA ANNIVERSARY 107 2018 FLHTCUTG 1750 TRIKE TRI GLIDE ULTRA CLASSIC 107 2017 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2020-2022 FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022 FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2020-2021 FLHX 1750 ABS STREET GLIDE 107 2017-2022 FLHX 1750 ABS STREET GLIDE ANNIVERSARY 107 2018 FLHX 1750 STREET GLIDE 107 2017-2019 FLHXS 1750 ABS STREET GLIDE SPECIAL 107 2017-2018 FLHXS 1750 ABS STREET GLIDE SPECIAL ANNIVERSARY 107 2018 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 2019-2022 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 ARCTIC BLAST LIMITED 2021 FLHXSE 1923 ABS STREET GLIDE CVO 117 2022 FLHXST 1923 ABS STREET GLIDE ST 117 2022 FLRT 1750 ABS FREEWHEELER 107 2019 FLRT 1750 FREEWHEELER 107 2017-2018 FLRT 1868 ABS FREEWHEELER 114 2020-2022 FLSB 1750 ABS SOFTAIL SPORT GLIDE 107 2018-2022 FLSL 1750 ABS SOFTAIL SLIM 107 2018-2021 FLTRX 1750 ABS ROAD GLIDE 107 2017-2022 FLTRX 1750 ROAD GLIDE 107 2017-2019 FLTRXS 1750 ABS ROAD GLIDE SPECIAL 107 2017-2018 FLTRXS 1868 ABS ROAD GLIDE SPECIAL 114 2019-2022 FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2022 FLTRXST 1923 ABS ROAD GLIDE ST 117 2022 FXBB 1750 ABS SOFTAIL STREET BOB 107 2018-2020 FXBB 1750 ABS SOFTAIL STREET BOB 114 2021-2022 FXBB 1750 SOFTAIL STREET BOB 114 2021 FXBR 1750 ABS SOFTAIL BREAKOUT 107 2018-2020 FXBRS 1868 ABS SOFTAIL BREAKOUT 114 2018-2022 FXBRS 1868 ABS SOFTAIL BREAKOUT ANNIVERSARY (ANX) 114 2018 FXDR 1868 ABS SOFTAIL KING 114 2019 FXDRS 1868 ABS SOFTAIL KING 114 2020 FXFB 1750 ABS SOFTAIL FAT BOB 107 2018-2019,2021 FXFBS 1868 ABS SOFTAIL FAT BOB 114 2018-2022 FXLR 1750 ABS SOFTAIL LOW RIDER 107 2018-2020 FXLRS 1868 ABS SOFTAIL LOW RIDER S 114 2020-2021 FXLRS 1923 ABS SOFTAIL LOW RIDER S 117 2022 FXLRST 1923 ABS SOFTAIL LOW RIDER ST 117 2022 FXST 1750 ABS SOFTAIL STANDARD 2021-2022 FXST 1750 SOFTAIL STANDARD 2021
