CONNECTING ROD LTZ400

Noliktavā

Produkta kods

09230053

Special Price 188,00 € Regular Price 236,00 €

Nosūtīsim: no 24.03.2026 līdz 25.03.2026

Piegādāt uz

Aprēķināt piegādes izmaksas

Valsts

Štats/Province

Skaits

Ikmēneša maksājums no 9.45 €, izvēloties kā maksājuma veidu ESTO nomaksu.

Heavy-duty OE replacement connecting rods
Certified 8620 AISI steel provides superior strength
Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
Features the latest in caged needle roller bearing designs for high rpm longevity
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
Double honing produces an ultra-round bearing surface for reliability at high rpm

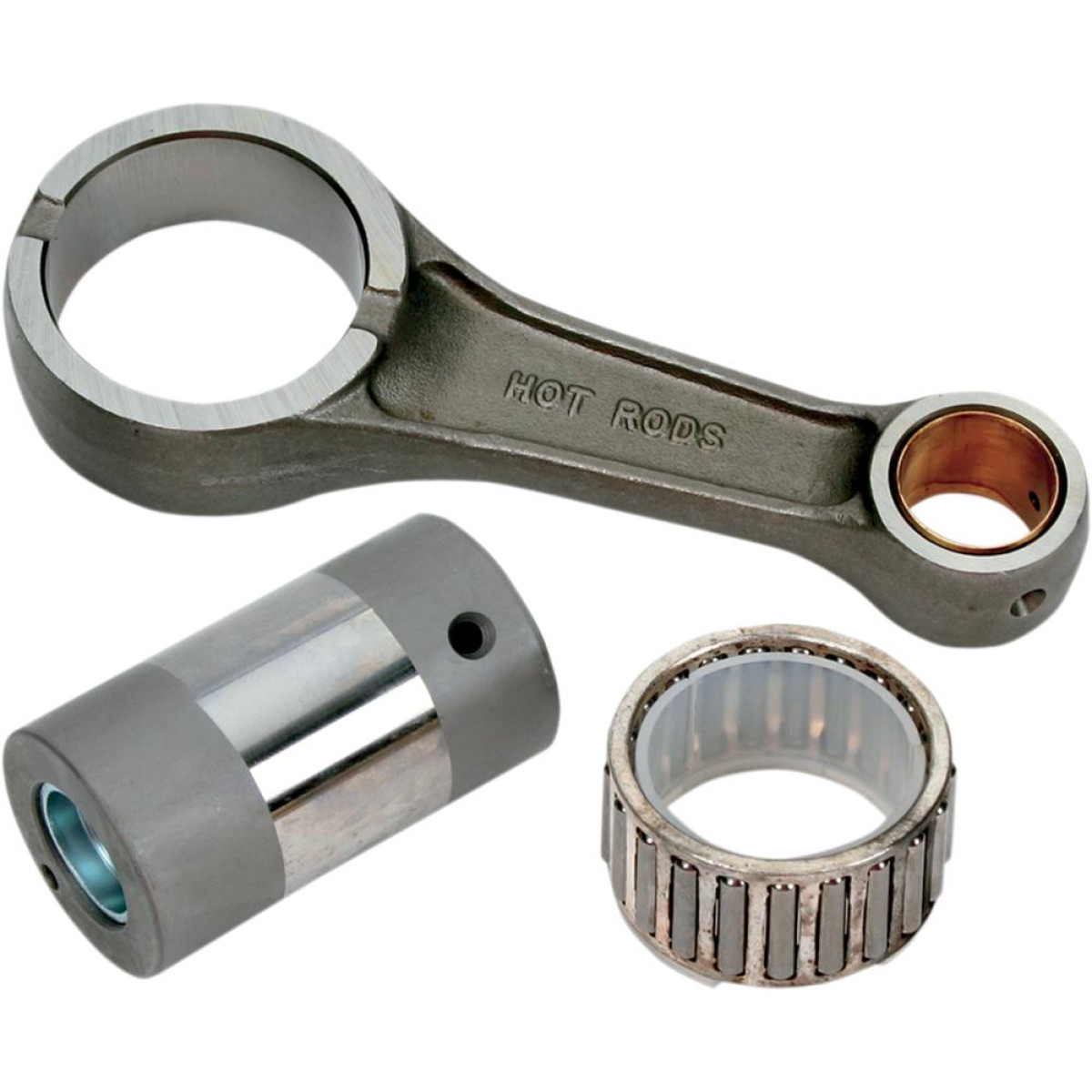

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
Made in the USA
Compatible with Hot Rods and OE crankshafts.

Connecting Rod Big End I.D. 43.000 mm Connecting Rod Big End Width: 21.800 mm Connecting Rod Center-to-Center: 107.000mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 20.000 mm Pin Length: 61.800 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing

Brand

HOT RODS

Vendor Part Number

8630

Displacement

400 cc

Engine Type

4-Cycle

Material

8620 Steel

Product Name

Connecting Rod Kit

Units

Kit

Vairāk informācijas
Svars	0.780000
Augstums	47
Platums	88
Zīmols	HOT RODS
Garums	193
Svītrkods EAN13	723980406890
Piegādātāja preces kods	8630
Outlet, gala izpārdošana	Nē
Piemērotība modelim (1. kat.)	ARCTIC CAT 400 2X4 DVX 2004-2008 400 2X4 DVX TS 2006-2007 ARCTIC CAT (TEXTRON) 400 2X4 DVX 2004-2008 400 2X4 DVX TS 2006-2007 KAWASAKI KFX 400 2X4 2003-2006 KLX 400 R 2003 KLX 400 SR 2003 SUZUKI DR-Z 400 2000-2005 DR-Z 400 E 2000-2007 DR-Z 400 S 2000-2013 DR-Z 400 SM 2005-2013 LT-Z 400 2X4 QUADSPORT 2003-2013 LT-Z 400 Z 2X4 QUADSPORT LTD 2004-2009,2012
